CR-50 Product Introduction
In actual production line and warehousing operation scenarios, gun-type bar code scanners are not always the best choice, especially for mobile workers. Each time they pick up, scan, and then put down, the handheld scanner will take 5 to 8 seconds. Time consumes a lot of time and labor for workflows that require high-frequency scanning.
This plug-and-play, low-power wearable scanner uses a 0.96-inch OLED screen to display sound and light, can read 1D/2D barcodes at a distance of 3-150cm, cross aiming, and Bluetooth Low Power (BLE) provides HID/SPP connection, uses a pure cobalt high-density battery, and supports more than 7500 scans once in 1 second.
Free your hands, mini appearance, scan code freely without any sense of restraint
Product characteristics
- Standard Distance
3-45CM dot aiming
Bluetooth low Power consumption (BLE)
provides HID/SPP connection - Medium and long distance
3-150CM Cross aim
Bluetooth low Power consumption (BLE)
provides HID/SPP connection - Extremely lightweight visual wearable device
Weight: 19 grams (excluding finger covers).
Appearance size: M35mm*W24mm*H20mm - DISPLAY

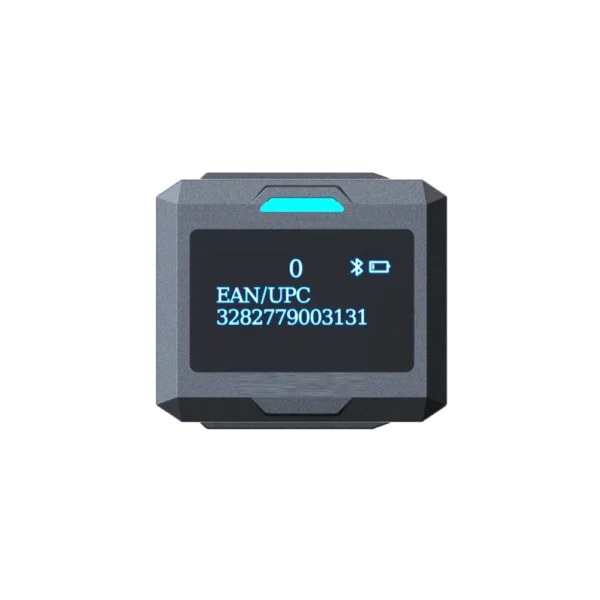

The 0.96-inch OLED screen displays sound, electricity and operation guide. - Details
Pure cobalt high-density battery, scan once a second can support more than 7500 consecutive scans, scan once in 5 seconds can support more than 30000 scans, read 1D/2D bar code, support screen scanning, QR CODE data matrix.Product Parameters
Memory: FLASH/16MB Scanning engine: support for 1D/2D Scan mode: support touch scan mode Scan depth of field: medium and long reach 3-150cm standard pitch 3-45cm Appearance size: 35mm long * 26mm wide * high 20mm Weight: 19g Battery life: continuous working time > 12 hours (5 seconds interval), standby about 480 hours Button service life: 10 million times External interface: dot matrix interface, support seat charging data communication charging Power adapter: input: AC100-240V-50/60HZO5A Output: DC3.7V-2.5A Prompt mode: buzzer, LED indicator, vibration Battery type: 195mAH explosion-proof battery Charging current: minimum 0.2C Number of charge and discharge cycles: ≥ 400times Scan times: 1 second-7500 times Buzzer: 1 can choose to turn off Vibrating motor: 1 can choose to turn off Remote push updates: online updates are supported Lighting: red LED Field of view angle: horizontal 42 °, vertical 28 ° Standard: Bluetooth communication charging base, charger, USB cable, manual, after-sales warranty card, certificate. Optional: connect USB charging plug, one-to-many gateway, serial communication power supply line. Data acquisition / wireless communication 1D/2D scan barcode density: > 5mil scan distance: 3cm-150cm (depending on different barcode density and code system) decoding ability: UPC/EAN、Code128、Code39、Code93、 Code11、Interleaved2of5、Discrete2of5、Chinese2of5、 Codabar、MSI、RSS；PDF417、MicroPDF417 、 Composite、RSS、TLC-39、Datamatrix、QRcode、 MicroQRcode、Aztec、 PostalCodes: USPostNet；USPlanet；UKPostal；JapanPostalDutchPostal（KIX） Bluetooth: BLE，Bluetooth 5.1protocol, support HID/SPP, support OTA upgrade Communication distance: 40 meters (open) Environmental characteristics / level of protection Working temperature: -5 ℃ ~ 50 ℃ Storage temperature: -10 ℃ ~ 80 ℃ Relative humidity: 5%-95%RH Industrial protection grade: IP 6x Anti-rolling tea strength: can withstand 1500 times of 0.5m rolling
